HOWO 371 6×4 DUMP TRUCK
1.Large axle load capacity: The front axle of the vehicle adopts HF9 front axle with an axle load of 7 tons; the rear axle adopts AC16 axle with an axle load of 16 tons. Both the front and rear axles adopt a reinforced design and can withstand larger loads. Advanced gear transmission technology and lubrication system are used inside the axle to improve the reliability and service life of the axle.
2.Large cargo compartment volume: The cargo compartment volume of HOWO 371 dump truck is 18 cubic meters, which is welded with high-strength steel plates. The interior of the cargo compartment is smooth and flat, and it is not easy to stick to the material. The lifting mechanism of the cargo compartment adopts the domestic 191 oil cylinder, which has a large lifting force and a fast lifting speed, and can complete the unloading of goods in a short time.
HOWO 371 6×4 DUMP TRUCK
The HOWO 371 dump truck is a powerful transport tool, equipped with the WD615.47 engine independently developed by Sinotruk, with a displacement of 9.726L, an output of 371 horsepower, and a maximum torque of 1,600 Nm. It is matched with the HW19710 gearbox, with 10 forward gears and 2 reverse gears, and easy shifting. In terms of chassis, it adopts a high-strength steel plate frame, the front axle is HF9, and the rear axle is AC16 bridge, with excellent load-bearing capacity, matched with 12.00-20 specification tires, stable grip, and can adapt to a variety of complex road conditions.
Details

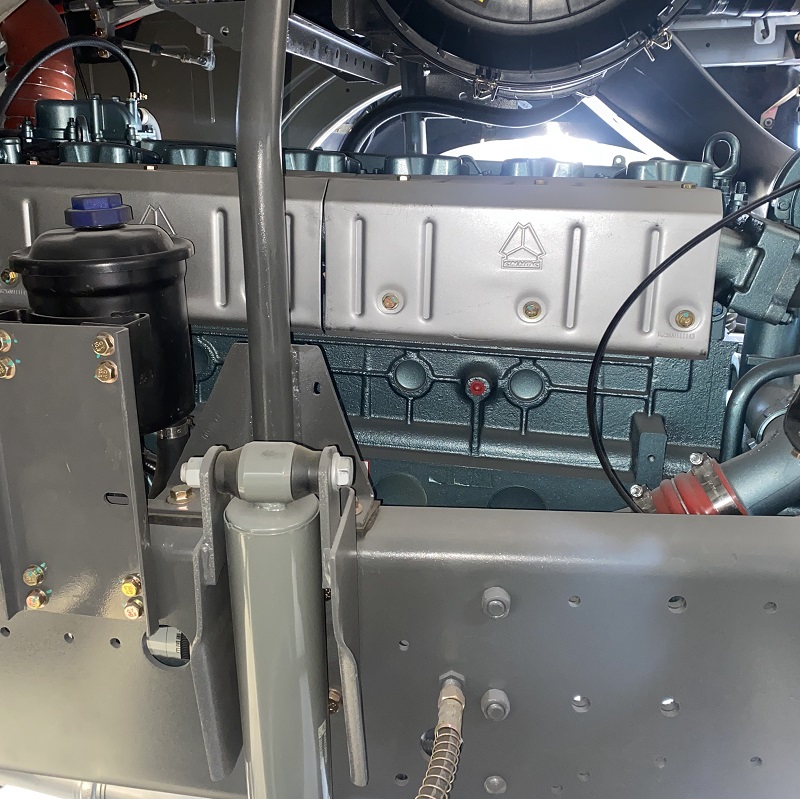

The engine adopts advanced turbocharging technology, which can provide powerful power output under various working conditions. With a power of 371 horsepower and a torque of 1,600 Nm, it can easily cope with tasks such as heavy-load transportation and climbing, and has quick response in starting and acceleration. The use of advanced common rail fuel injection technology improves fuel utilization, has high thermal efficiency, can significantly reduce fuel consumption and emissions, and can save operating costs for users.
For drivers who are used to right-handed operation, shifting gears and operating the handbrake in the right-hand driving position will be more natural and convenient, which will help improve the accuracy and efficiency of operation and reduce the mistakes that may be caused by unsmooth operation. The layout of the internal control buttons and instrument panel of the right-hand driving cab of the HOWO371 dump truck has been carefully designed, taking into full consideration the driver's operating habits and convenience. Commonly used buttons and switches are arranged in a position that is easy for the driver to reach, so that the driver can operate quickly during driving.
Product Paramenters
MODEL | ZZ3257M3866C | ||
Driver position | Right Hand | ||
Driving type | 6*4 | ||
Wheelbase(mm) | 3775+1400 | ||
Max. Speed(km/h) | 100 km/h | ||
Engine | Brand | SINOTRUK | |
Model | WD615 | ||
Emission Standard | EURO Ⅲ | ||
Rated output power | 375HP/276KW | ||
Cylinder in line | 6 | ||
Air filter element | Oil bath air filter | ||
Displacement(L) | 9.726L | ||
Transmission | Type | Manual | |
Model | 12JSD180T, 12 forward speed and 2 reverse speed | ||
Front axle | Brand | SINOTRUK | |
Model | HF9 | ||
Rear axle | Brand | SINOTRUK | |
Model | 16T AC16 Speed ratio：5.262 | ||
Clutch | ￠430 diaphragm clutch | ||
Steering | ZF technology | ||
Frame | Type | Bottle neck, double frame | |
Dimension (mm) | 940-850 (W) 300 (H) | ||
Section thickness(mm) | 8+8 | ||
Suspension | Front | Semi-elliptic 12pcs | |
Rear | Semi-elliptic 14pcs | ||
Fuel tank | 300L Aluminum alloy | ||
Tires | 295/80 R22.5 | ||
Brakes | Running brake:Dual circuit compressed air brake | ||
Parking brake:Air discharging with spring control | |||
Auxiliary brake:Engine exhaust brake/ | |||
Cab | Driver seat | mechanical | |
Lighter | Yes | ||
Entertainment | mp3+radio | ||
Cab maintanence titled | manual | ||
Air conditioner | manual | ||
Rear view mirror | manual | ||
Sleeping bed | single bed | ||
Cargo box specs | DIMENSIONS (mm) | 5800x2300x1500(LxWxH) | |
Material | T700 | ||
Lifting system | JIAHENG 179 | ||
Thickness(mm) | Bottom 16mm, sides 12mm | ||
Other | 600L Sprinkler | ||
OVERALL DIMENSIONS | 8650×2550×3300 mm | ||
